EL CORAZON TECHNICAL SPECIFICATIONS

AUDIO

32 input, tri-amplified four-way house system, with a 40×8 snake split to 32 input monitor desk. Six bi-amplified monitor mixes plus cue wedge. 17k watts total system power.

MAIN SPEAKER ENCLOSURES:

(4) JBL AM6315/95 (15″ , 8″ , 1.5″)

(4) JBL SRX728S (2 x 18″)

MAIN POWER:

(3) QSC PL 4.0 (1400w/ch @ 4 ohms)

(1) QSC PL 230 (900w/ch @ 4 ohms)

FOH PROCESSING & CONSOLE (At FOH):

Midas M32 (WiFi ready)

(2) BSS Mini-Drive FDS 336 system controller (stereo 2-way, mono sub)

MONITORS (Bi-amped):

(6) JBL SRX712m floor wedges

(2) JBL AM6212/95 sidefills (flown)

(1) JBL SRX 725 Drumfill

MONITOR POWER (Located Stage Left):

(3) QSC PLX 3002 (900w/ch @ 4 ohms)

(3) QSC PLX 1202 (200w/ch @ 8 ohms)

(1) QSC PLX 2402 (1100w/ch @ 4 ohms) – Drumfill

MONITOR PROCESSING & CONSOLE (Located Stage Left):

(1) Behringer X32

(2) DBX Driverack PA Processor

(2) JBL DSC 260 Processor

AUDIO / VISUAL EQUIPMENT:

PROJECTOR:

(1) Optima W318ST 3500 Lumen WXGA Short-throw DLP Projector (HDMI / VGA)

SCREEN:

(1) HCMW 87”x139” projector screen

LIGHTING

LIGHTS

(6) LED 10W 10” Beam PAR 64

(4) Blizzard Hotbox RGBW (Stage Fills)

(3) Par 56 300W NSP (Front Spots)

HAZE

(1)  Antari Faze 380Z

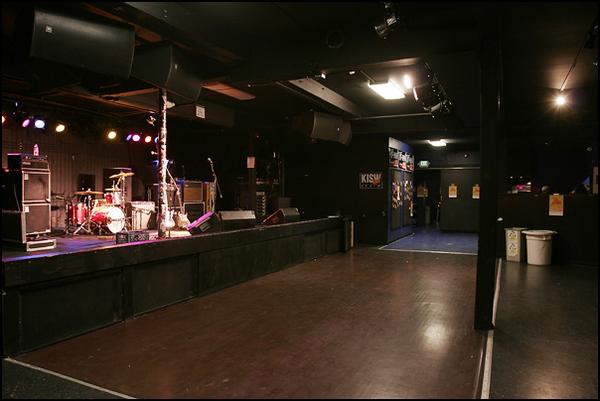

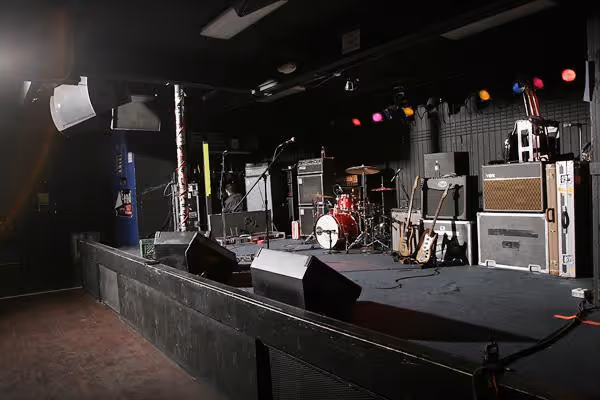

STAGE

DIMENSIONS

21′ wide x 16′ Deep x 3′ High, 9′ ceiling height

POWER

Single Phase 100amp 240 volt cam locks located stage right (female)

• (8) 20 amp 120 volt circuits upstage
• (1) 20 amp 120 volt circuit downstage

‍

‍
